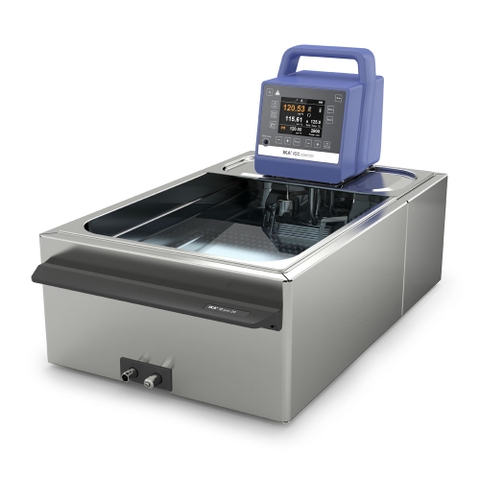

Bể ổn nhiệt IKA ICC control pro 20

Appliance type

Compact Immersion Circulators

Classification according to DIN 12876

III

Identification according to DIN 12876

FL

Heat output

2000 W

Operating temperature min.

-20 °C

Operating temperature max. (with external heating)

150 °C

Working temperature min.

room temp. +10K @1000rpm °C

Working temperature max.

150 °C

Temperature display

yes

Temperature control

PT 100

Working temperature sensor

PT 100

Safety temperature sensor

PT1000

Working temperature display

TFT

Safety temperature display

TFT

Temperature stability DIN 12876

0.01 ±K

Connection for ext. temperature sensor

PT 100

Display resolution

0.1 ±°C

Display for operation with ext. sensor

yes

Heat control accuracy

0.1 ±K

Warning function optical

yes

Warning function acoustic

yes

Warning function excess temperature

yes

Adjustable safety circuit min.

0 °C

Adjustable safety circuit max.

160 °C

Sub-level protection

yes

Over-level protection

yes

Pump type

Pressure- / suction pump

Pump capacity adjustable

yes

Pump pressure max. (0 liters discharge flow)

0.3 bar

Pressure pump (suction side) (0 liter flow)

0.2 bar

Pump pressure max. (0 bar back pressure)

18 l/min

Bath depth min.

150 mm

Calibration option

yes

Appliance fastener

clamp

Technical data complies with the standard

DIN 12876

Permissible ON time

100 %

Dimensions (W x H x D)

145 x 340 x 200 mm

Weight

3.75 kg

Permissible ambient temperature

5 - 40 °C

Permissible relative humidity

80 %

Protection class according to DIN EN 60529

IP 21

RS 232 interface

yes

USB interface

yes

Voltage

230 / 115 V

Frequency

50/60 Hz

Power input

2100 W
